—Support SIP protocol— SIP v1 (RFC2543), v2 (RFC3261)
—Support TCP Play Protocol
—Speaker with 30 watts power
—Support power on through POE module

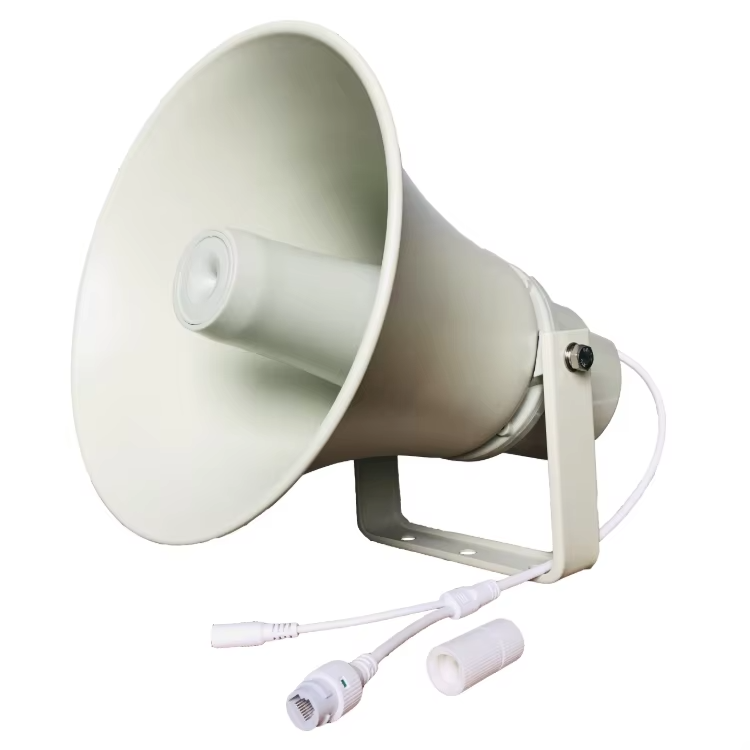

The SIP744T is a SIP network active horn with a 10/100M Ethernet interface and a built-in high-quality speaker that plays network audio through its own amplifier and speaker output up to 30 W. It also supports the setting of up to 10 multicast areas with priority, and can be used as a broadcast terminal.
SIP744T device only SIP network playback function, is a simple network active horn with amplifier output, which receives SIP audio data and provides sound output. SIP744T and SIP server, SIP phone use can realize the main control room to SIP744T terminal for SIP intercom (one-way) and RTP multicast function.
Features
— Support SIP v1 (RFC2543), v2 (RFC3261) and Other network protocols
— Support TCP Play Protocol
— Supports audio decoding protocols such as wideband G.722, narrowband G.711a/u and MP3.
— Accept RTP multicast data from the center of SIP server, with its own amplifier and speaker output to play
— Supporting private broadcast protocol, which can be broadcast shouting, timed ringing and Other operations through our broadcast software
— Optional POE power supply
— Can be used with SIP803T intercom broadcast microphone, compatible with Other SIP decoding terminal, you can freely choose to build SIP system.
Parameters
| PowerDC 12-24VAdditional configurations with POE functionality can be purchased Audio FormatsMP3 up to 192 kBit fixed & variable bit ratesG.711 a/u,G.722,PCM,mp3 decodecOpus by OEM OtherSpecification size: Φ246x292mm（30W），Φ320x340mm（50W）Operating temperature range -40～85℃Storage temperature range -40～85℃ | Network Interface10/100M Base adaptive Ethernet interfaceSIP v1 (RFC2543), v2 (RFC3261), TCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP. Electrical interface1 RJ45 network interface1 DC 5.5-2.1 power connector User / Application InterfacesManagement system (software/web)Network Control API |
